APF195 204-195-000-021 Compact DC Power Supply Module DIN-rail-mounted

Plaats van herkomst	China
Merknaam	Other
Certificering	Certificate of Origin
Modelnummer	APF195 204-195-000-021
Min. bestelaantal	1 st
Prijs	$1400
Verpakking Details	Originele doosverpakking
Levertijd	3-5 dagen
Betalingscondities	T/T
Levering vermogen	1-99 stuks / 3-5 dagen

Productdetails

Merk	Ander	Modulenummer	APF195
Bestelnummer	204-195-000-021	Verkoopprijs	$1400
Voorwaarde	Op voorraad	Oorsprong	China
Doorlooptijd	3-5 werkdagen	Garantie	1 jaar
Gewicht	1KG

Laat een bericht achter

Productomschrijving

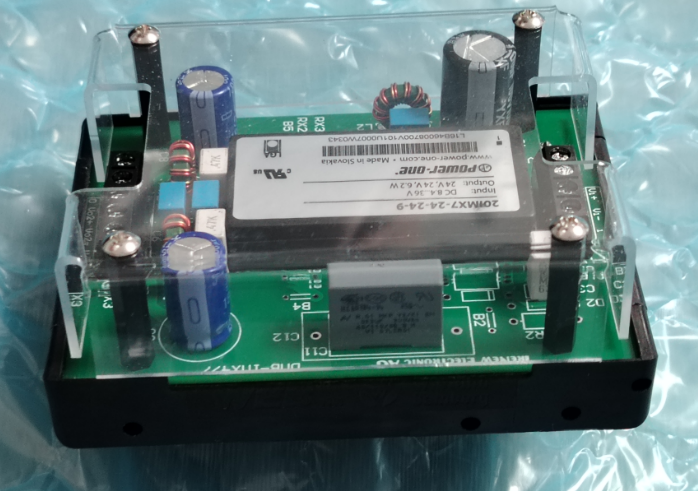

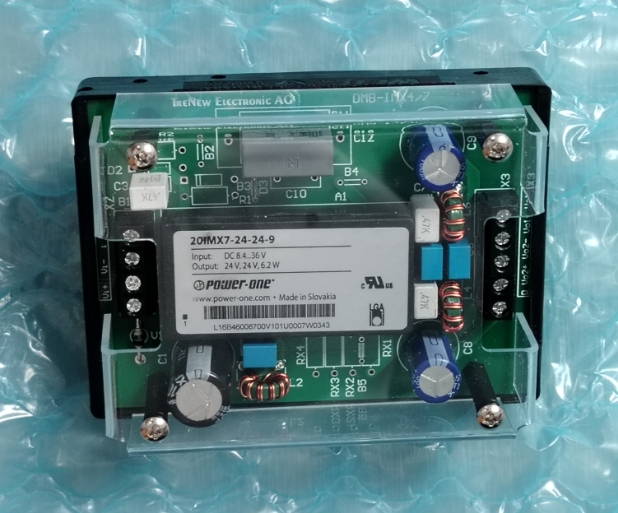

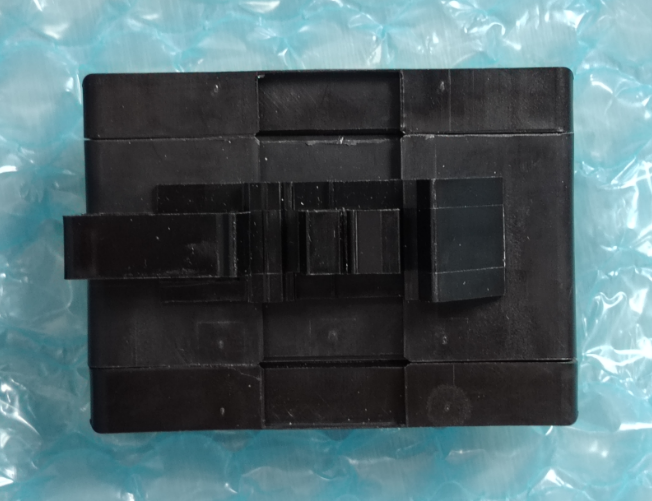

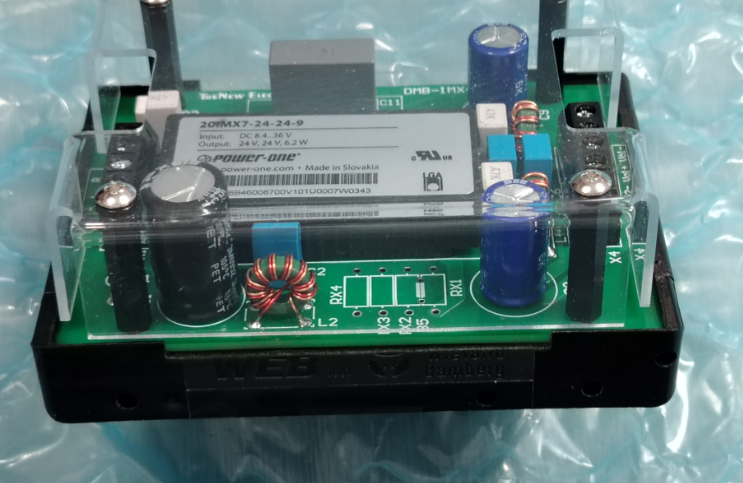

APF195 204-195-000-021 Compact DC Power Supply Module DIN-rail-mounted

The APF195 is a compact, DIN-rail-mounted DC-DC power supply module designed to provide reliable power to industrial machinery monitoring systems and field devices. This module is suitable for harsh industrial environments such as vibration monitoring and rotating machinery protection. It accepts a wide input range of 9.4 to 36.0 VDC and provides two stable 24 VDC outputs, each with a maximum current of 0.13 A (for a total maximum of 0.26 A, achieved through parallel output).

Key Features

Dual Independent Outputs: Provides two 24V DC / 0.13A outputs, which can be used separately or in parallel
Current Boost via Parallel Connection: When the two outputs are connected in parallel, the total current can reach 0.26A (6.2W) without the need for external diodes
Wide Input Range: Input voltage 9.4-36.0 VDC, compatible with 12V and 24V batteries or DC bus
High Efficiency: Typical efficiency >80%, reducing heat generation
Low Output Ripple: Typical <50mVpp, maximum <240mVpp, suitable for sensitive electronic equipment
Wide operating temperature range: -40°C to +85°C, suitable for extreme environments

Typical Applications

Powering the GS112x Series Isolation Units: One APF195 can power one GS1127 or two GS1124/GS1122 units. If two GS1127 units are required, two APF195 units must be connected in parallel (to handle inrush current)
Providing auxiliary power for monitoring systems: Used to power low-power devices such as external sensors, relays, and indicator lights
Decentralized DC-DC conversion in industrial PLC cabinets: Draws power from a 24V bus, isolating or converting it to another 24V output (technically a non-isolated DC-DC converter, but with protection features)
Replacing outdated power modules: Used for retrofit projects; compatible with DIN rail standards

⚠️ Note: Before use, please ensure that the total current of your device does not exceed 0.13A per channel (or 0.26A when connected in parallel), and assess the inrush current. If powering a GS1127, please follow the "one APF195 drives one GS1127" rule.

Product Specifications

Brand Name	Other
Model	APF195
Ordering Information	204-195-000-021
Catalog	Vibration Monitoring
Gross Weight/Shipping Weight	2.2 lbs / 35.2 oz / 1kg
Packing Size	16cm x 16 cm x 12 cm
Country of Origin	China
HS Code	8537101190
Lead Time	In Stock
Shipping Port	Xiamen
Payment	T/T
Sales Price	$1400
Warranty	12 months
Lead Time	3-5 work days
Courier Partners	DHL, UPS, TNT, FedEx and EMS

Why Choose the APF195 204-195-000-021?

Over 65 years of experience in sensors and systems
Products comply with stringent IEC, EN, UL, CSA, and EAC standards
We offer complete solutions ranging from power supplies to sensors and monitoring systems
